FlexiBowl Feeding System
FlexiBowl is an automatic bulk parts feeding system which allows entire families of parts to be fed into the assembly process, regardless of their shape, fragility, material composition, weight and surface characteristics, ideal for manufacturers whose production involves frequent product changeovers and reduced volumes.
Parts are separated through the combined actuation of servomotor and impulse generator. These shaking movements allow parts to arrange and lie on feeder surface with the right orientation, so that a vision system can locate them and send coordinates to a robot for pick up.
FlexiBowl is fully compatible to work with Shibaura Machine SCARA robots and Universal Robots
Product Range |
FlexiBowl® 200
 |
FlexiBowl® 350
 |
FlexiBowl® 500
 |
FlexiBowl® 650
 |
FlexiBowl® 800
 |
|---|---|---|---|---|---|
| Recommended part size | 1>x<10 mm | 1>x<15 mm | 5>x<50 mm | 20>x<110 mm | 60>x<250 mm |
| Recommended part weight | <30 gr | <40 gr | <100 gr | <170 gr | <250 gr |
| Bulk storage capacity | 1÷5 dm³ | 5÷10 dm³ | 10÷20 dm³ | 20÷40 dm³ | 20÷40 dm³ |
| Backlight Area (Dim.) | 180x52,5 mm | 230x78,5 mm | 334x167 mm | 404x250 mm | 404x325 mm |
| Backlight Area | 90 cm² | 166 cm² | 513 cm² | 922 cm² | 1125 cm² |
| Max Payload | 1 kg | 3 kg | 7 kg | 7 kg | 7 kg |
| Pick level from plate | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Weight | 18 kg | 25 kg | 42 kg | 54 kg | 71 kg |
Options
Rotary Discs
Rotary discs are available in various colours, textures and adhesion degrees on all sizes. Discs are compatible with FDA and antistatic requirements. Easy to clean up. Customised discs upon request.
NEW Custom Made
NEW Custom Made

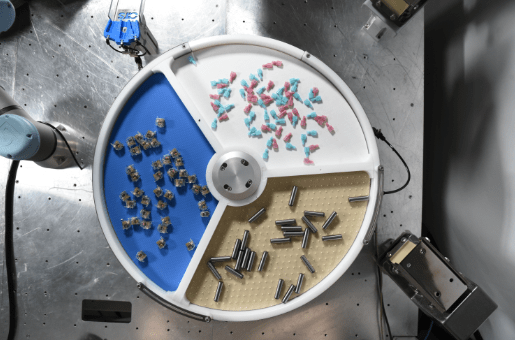

NEW For Multiple Part Feeding
A wide range of choice for backlight/toplight applications
Spike Disc is suitable for cylindrical parts
